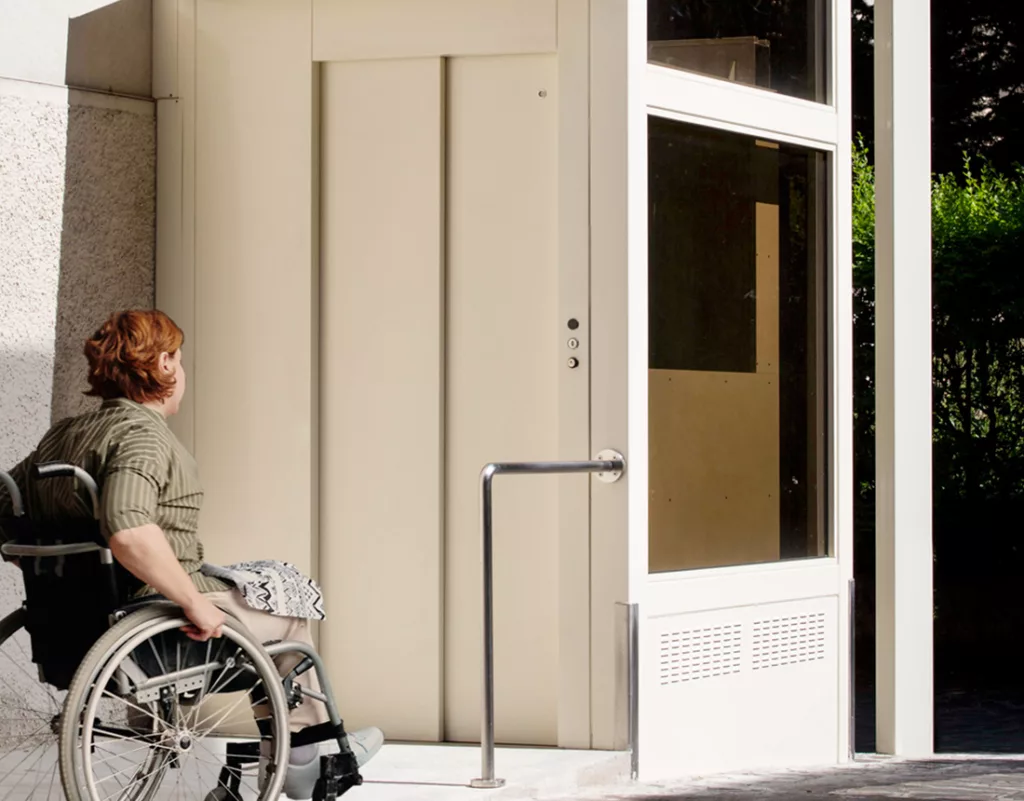

Suite home lifts for disabled people by NOVA Elevators are designed in detail to eliminate architectural barriers of any kind within buildings, allowing users full freedom of movement.
Suite home lifts for disabled people feature wide cabins to accommodate a wheelchair and possible carers, while optimising space in any installation environment.
Suite home lifts for disabled people feature numerous options and accessories to ensure safety in the cabin, such as handrails, seats and non-slip floors. Suite home elevators are also characterised by a smooth, jolt-free ride to provide a comfortable experience for all users.
Within public spaces, it is essential to provide systems to break down architectural barriers: Suite home lifts for disabled people meet this need, providing access for the disabled even in small spaces.
Bespoke Design
Home lifts for any location: new or existing buildings, indoor or outdoor, public or private spaces
Quality
Our customers always acknowledge our attention to detail and the highest quality standards
Energy Efficiency
Energy-efficient home elevators that reduce volume and maximize available space
Safety and comfort
Our products ensure a safe and comfortable ride for all users, turning it into a pleasant experience
Design
Classy and elegant
small lifts with refined shapes and valued materials
Suite home lifts for disabled people are available in two versions: hydraulic and gearless.
Suite home elevators Gearless ensure high energy efficiency (<0,75 KW with 230V, similar to any electrical appliance), optimizing the levels of power consumption in real time depending on the use.
The hydraulic version allows the highest level of flexibility in terms of size both indoors and outdoors.
Shaft
Masonry shaft
Metal structure
Suite home lift cabin moves either inside a masonry shaft or a metal shaft.
NOVA’s metal structures present a variety of solutions with glass and metal profiles suitable for any type of project, including the possibility
to fit into small stairwells, starting from just 68 cm in width.
Doors
Swing doors
Sliding doors
Swing doors (both with and without glass) or automatic sliding doors can be installed on all NOVA Suite home elevators, adapting to any need.
All doors are available in a wide variety of finishes and customization options, in order to accomplish an elegant design in harmony with the surrounding environment.
Technical specifications
Load: up to 400 kgs
Travel: up to 20 m
Entrances: single / double through car / double adjacent / triple
Stops: up to 10 (additional stops upon request)
Speed: 0,15 m/s within EU – 0,30 m/s outside the EU
Headroom: min. 2350 mm – 2500 mm with sliding doors
Pit: min. 200 mm
Drive: Gearless with VVFF motor
Power supply: single phase 230V, 50Hz
Motor power: ≤ 0.75 kW
Standards Compliance: Machine Directive 2006/42/CE
Gearless homelift cabinet
- Size: 250 x 120 x 2100 mm
