Suite home lifts for blocks of flats
Suite home lifts for blocks of flats by NOVA Elevators make it possible to guarantee accessibility to all flats, breaking down existing architectural barriers and significantly improving the quality of life.
Suite home lifts for blocks of flats, indoors or outdoors, significantly increase the value of the building and have a positive impact on the living comfort of all users.
Solutions for blocks of flats
Suite home lifts for blocks of flats also allow people with reduced mobility to access the different floors of the building: NOVA Elevators can install small lifts suitable for transporting wheelchairs in just 70 cm width, adapting to any context.
Safety and comfort
Suite home elevators for blocks of flats ensure a smooth and silent ride, preserving the highest quality standards for all users, such as the automatic return-to-floor in case of power failure.
All our products are manufactured with attention to energy efficiency and the environment, in order to reduce consumption and pollution.
Bespoke Design
Home lifts for any location: new or existing buildings, indoor or outdoor, public or private spaces
Quality
Our customers always acknowledge our attention to detail and the highest quality standards
Energy Efficiency
Energy-efficient home elevators that reduce volume and maximize available space
Safety and comfort
Our products ensure a safe and comfortable ride for all users, turning it into a pleasant experience
Design
Classy and elegant
small lifts with refined shapes and valued materials
Hydraulic & Gearless homelifts
Suite small lifts for blocks of flats are available in two versions: hydraulic and gearless.
Suite home elevator gearless ensures high energy efficiency (<0,75 KW with 230V, similar to any electrical appliance), optimizing the levels of power consumption in real time depending on the use.
The hydraulic version allows the highest level of flexibility in terms of size both indoors and outdoors.
Shaft
Masonry shaft
Metal structure
Suite home lifts cabin moves either inside a masonry shaft or a metal shaft.
NOVA’s metal structures present a variety of solutions with glass and metal profiles suitable for any type of project, including the possibility
to fit into small stairwells, starting from just 68 cm in width.
Doors
Swing doors
Sliding doors
Swing doors (both with and without glass) or automatic sliding doors can be installed on all NOVA Suite home elevators, adapting to any need.
All doors are available in a wide variety of finishes and customization options, in order to accomplish an elegant design in harmony with the surrounding environment.
Technical information and finishes
Technical specifications
Load: up to 400 kgs
Travel: up to 20 m
Entrances: single / double through car / double adjacent / triple
Stops: up to 10 (additional stops upon request)
Speed: 0,15 m/s within EU – 0,30 m/s outside the EU
Headroom: min. 2350 mm – 2500 mm with sliding doors
Pit: min. 200 mm
Drive: Gearless with VVFF motor
Power supply: single phase 230V, 50Hz
Motor power: ≤ 0.75 kW
Standards Compliance: Machine Directive 2006/42/CE

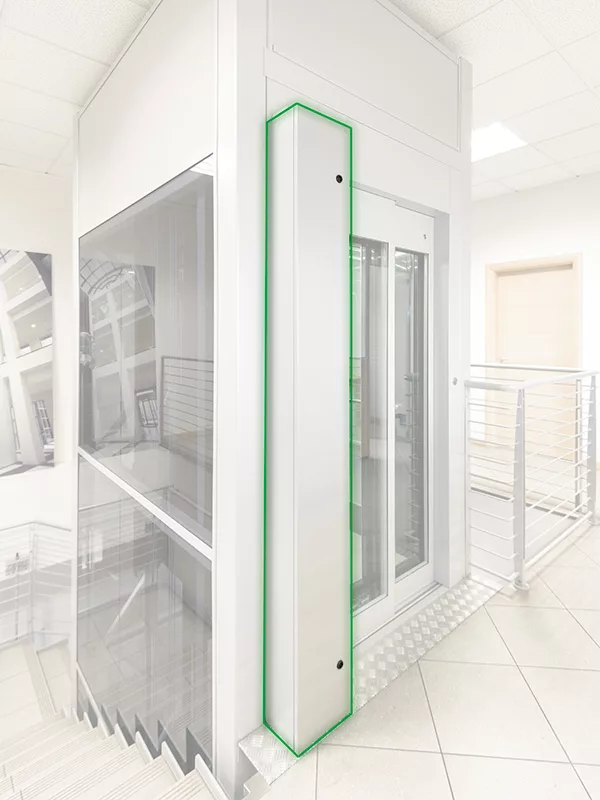

Gearless homelift cabinet
- Size: 250 x 120 x 2100 mm
Technical specifications
Duty load: up to 500 kg
Travel: up to 18 m
Entrances: single / double opposite / double adjacent
Stops: up to 10 (additional stops upon request)
Speed: 0,15 m/s within EU – 0,30 m/s outside the EU
Headroom: min. 2350 mm – 2500 mm with sliding doors
Pit: min. 110 mm
Drive: Hydraulic
Power supply: single-phase 230V, 50Hz
Standards Compliance: Machine Directive 2006/42/CE

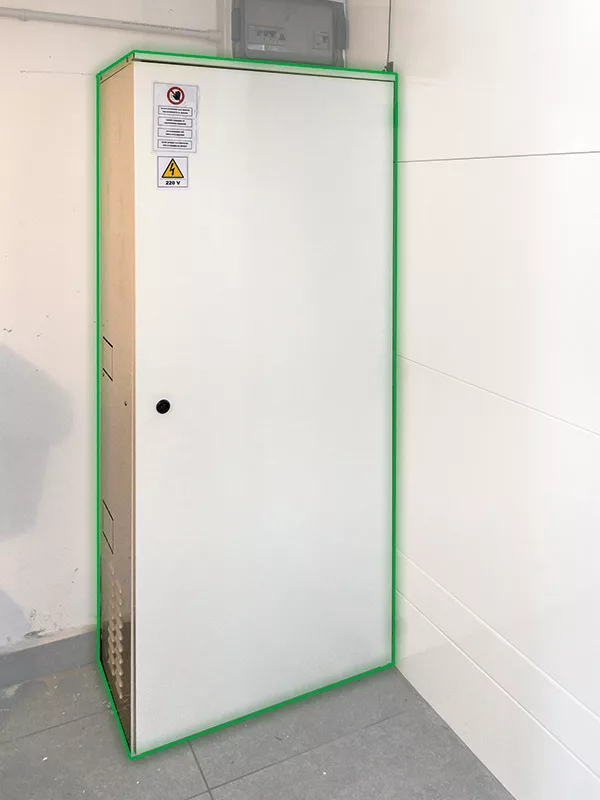

Hydraulic homelift cabinet
- Small: 600 x 360 x 1400 mm
- Medium: 750 x 410 x 1400 mm
- Large: 850 x 510 x 1500 mm
Cabins

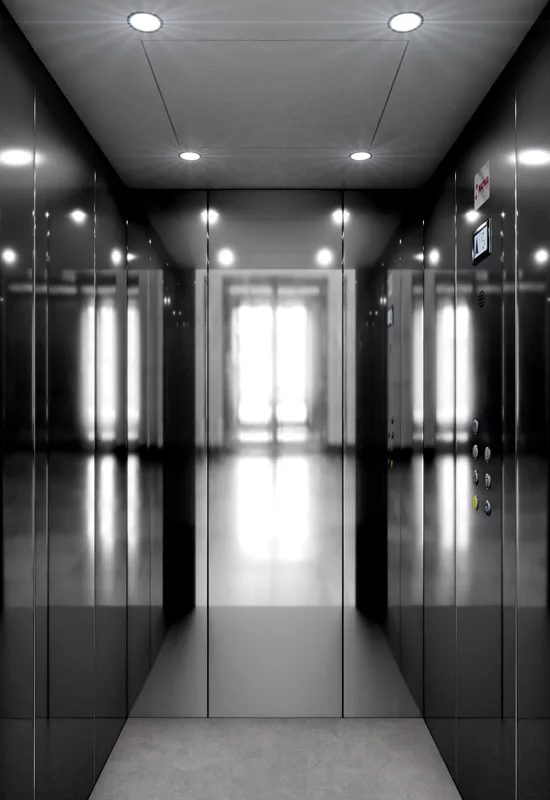

Cars with Skinplate walls
STANDARD CONFIGURATION
Suite homelift offers a wide variety of finishes in its standards configuration, with the possibility to choose between 10 skinplate colours and 5 PVC floor types, alongside the car lighting with 2 LED spots.
- N3PP black gloss skinplate walls
- White ceiling
- 13022 Beton Concrete PVC flooring
- Car lighting with 4 LED spots (optional)
- LCD car display (optional)
- A4 milk white skinplate walls
- White ceiling
- 13082 Gravel Concrete PVC flooring
- Car lighting with 2 LED spots
- PPS10 marble skinplate walls
- White ceiling
- 42292 Charcoal Slate PVC flooring
- “Panel” LED car lighting (optional)

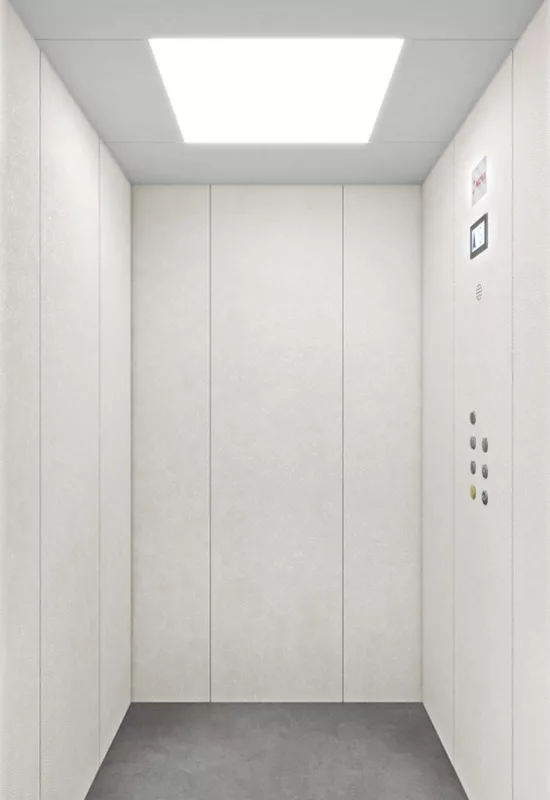

- A4 milk white skinplate walls
- White ceiling
- 13002 Silver Concrete PVC flooring
- Car lighting with 2 LED spots
- N1 light grey skinplate walls
- White ceiling
- 13022 Beton Concrete PVC flooring
- “Panel” LED car lighting (optional)
- LCD car display (optional)

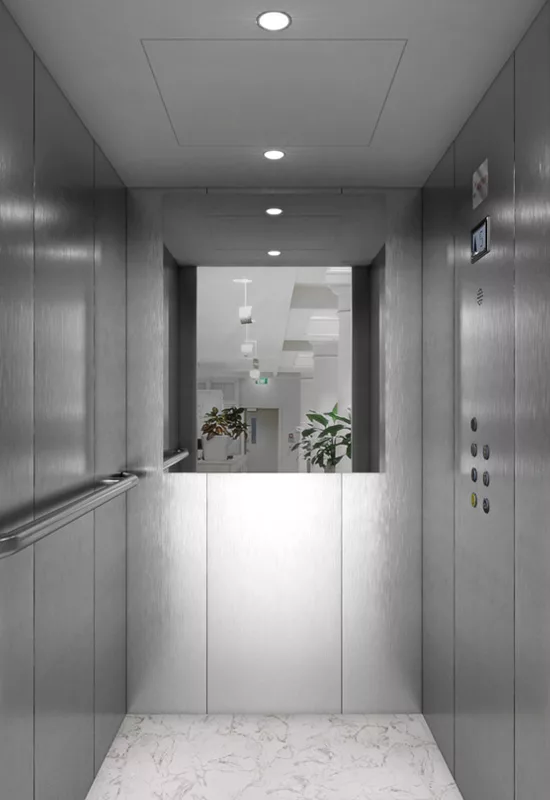

- F12PPS st. steel look skinplate walls
- White ceiling
- 13332 White Marble PVC flooring
- Car lighting with 2 LED spots
- Basic mirror 840 x 1050 mm (optional)
- Stainless steel handrail with curved ends (optional)
- LCD car display (optional)

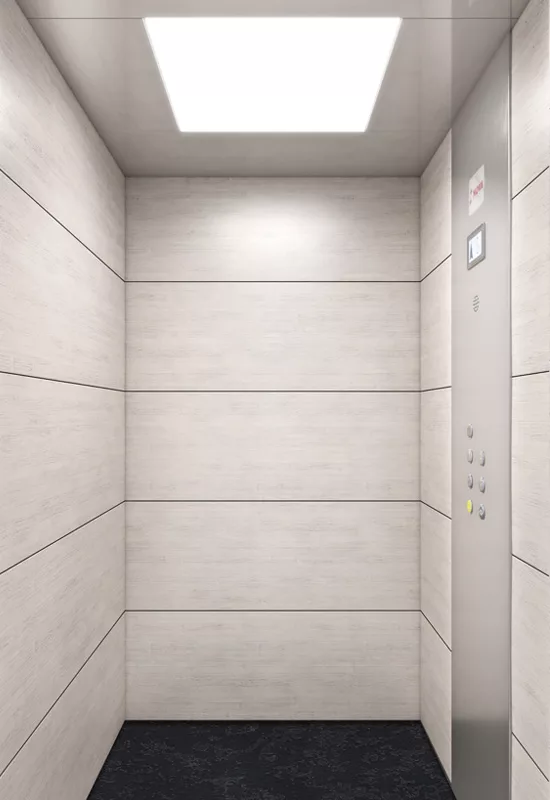

Cars with special walls
OPTIONAL CONFIGURATION
Suite homelift offers numerous customization options, including 10 plastic laminate finishes, 5 stainless steel colours and 10 standard RAL textured paintings, with the option to choose any other colour from the whole RAL range for car walls.
Car lighting can also be customized with LED panels and suspended ceilings to create striking lighting effects.

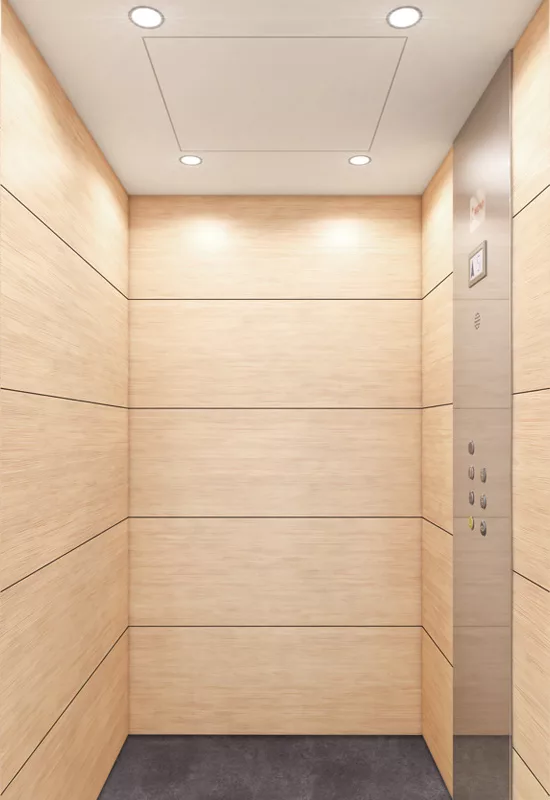

- Plastic laminate walls “381 Douglas Vanilla Microline”
- White ceiling
- 13082 Gravel Concrete PVC flooring
- Car lighting with 4 LED spots
- Polished stainless steel COP
- LCD car display

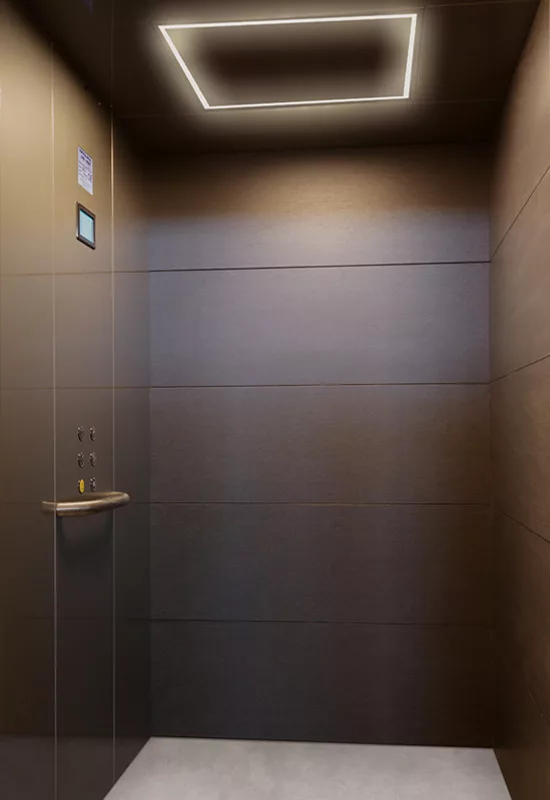

- Plastic laminate walls “609 Amazzonia Sucupira Holz”
- F12PPS st. steel look skinplate COP wall and ceiling
- 13002 Silver Concrete PVC flooring
- “Quadro” LED car lighting
- Stainless steel handrail with curved ends on COP, length: 480 mm
- LCD car display
- Plastic laminate walls “388 Douglas Ice Microline”
- White ceiling
- 42292 Charcoal Slate PVC flooring
- “Panel” LED car lighting
- Brushed stainless steel COP
- LCD car display

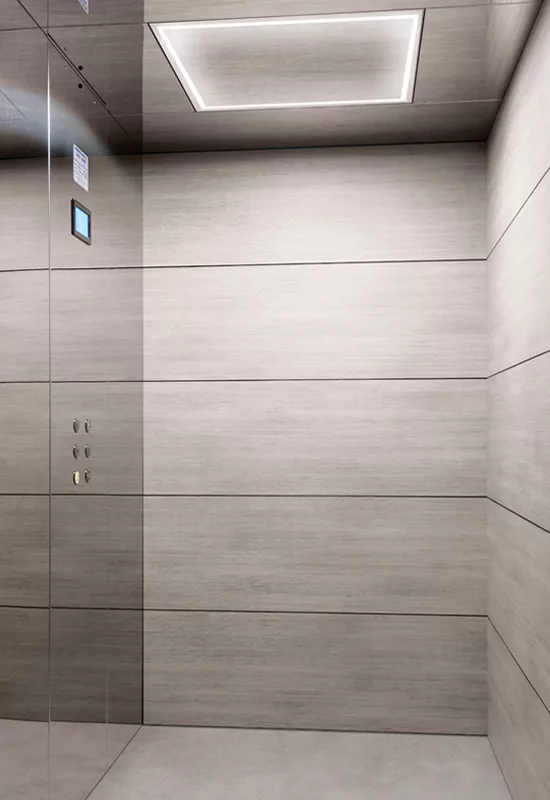

- Plastic laminate walls “388 Douglas Ice Microline”
- COP wall and ceiling in polished stainless steel
- 13002 Silver Concrete PVC flooring
- “Quadro” LED lighting
- LCD car display

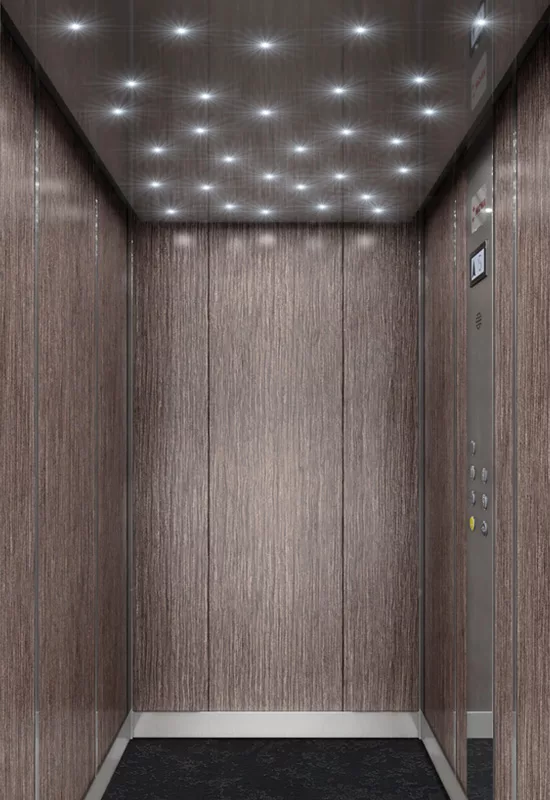

- Plastic laminate walls “1612 Teak Sumatra Root”
- COP and ceiling in polished stainless steel
- 42292 Charcoal Slate PVC flooring
- “Zodiaco” LED car lighting with suspended ceiling
- LCD car display

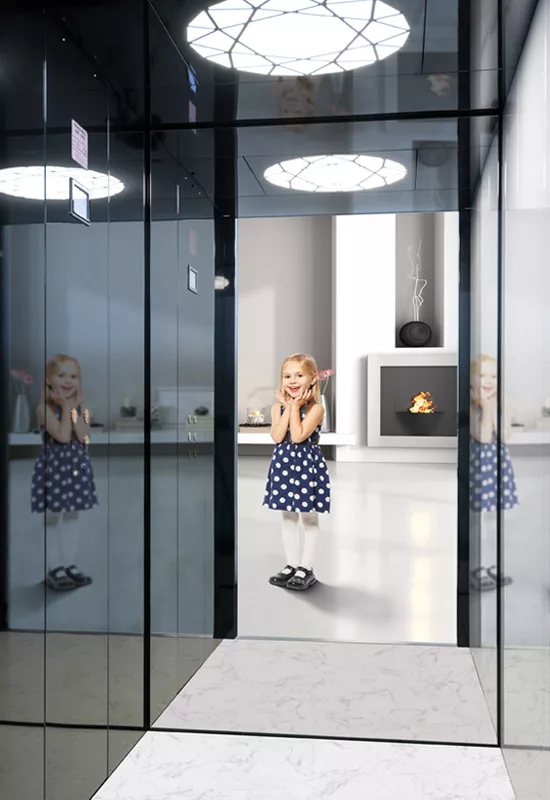

- Left wall and ceiling N3PP black gloss skinplate
- Right wall in polished stainless steel
- Full-width, full-height mirror on back wall
- 13332 White Marble PVC flooring
- “Black Diamond” LED car lighting
- LCD car display
Panoramic windows

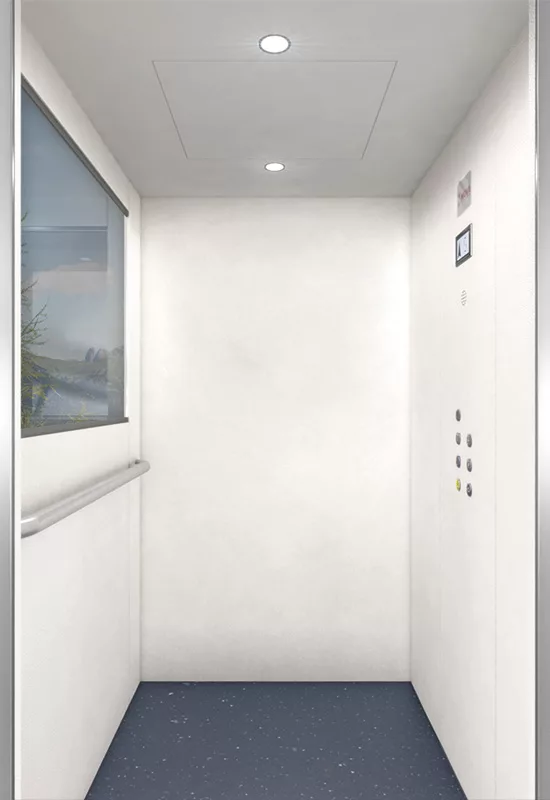

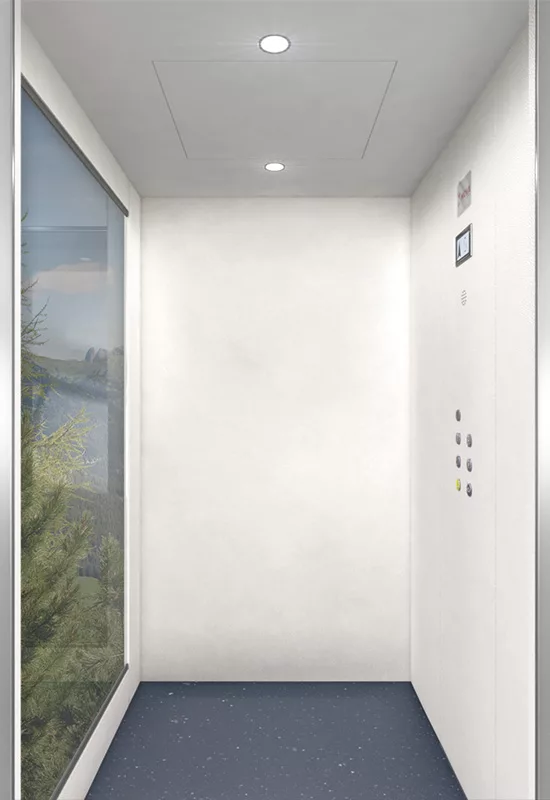

Full width, mid-height Window
Full width, full height Window

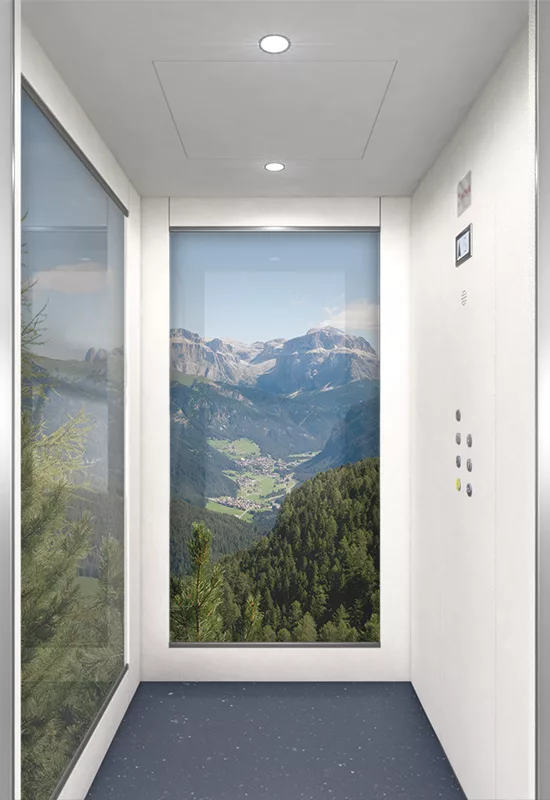

2 fully panoramic Windows
Lighting

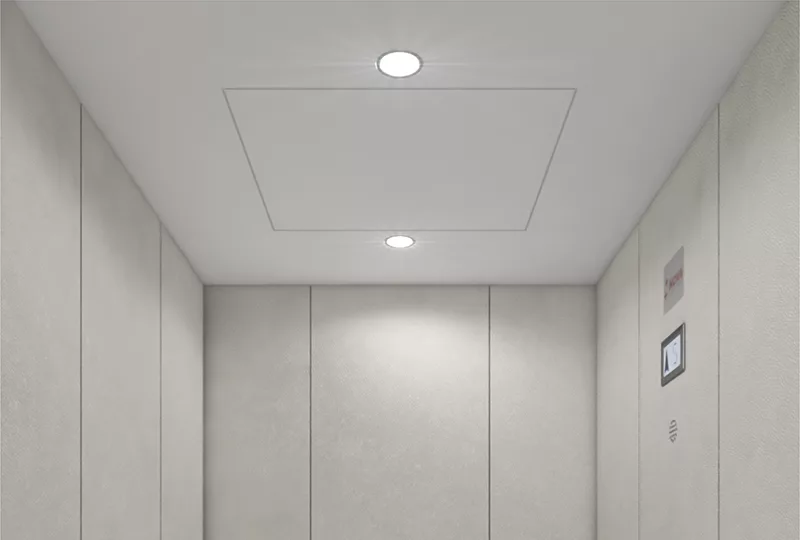

2 x LED Downlights Flush

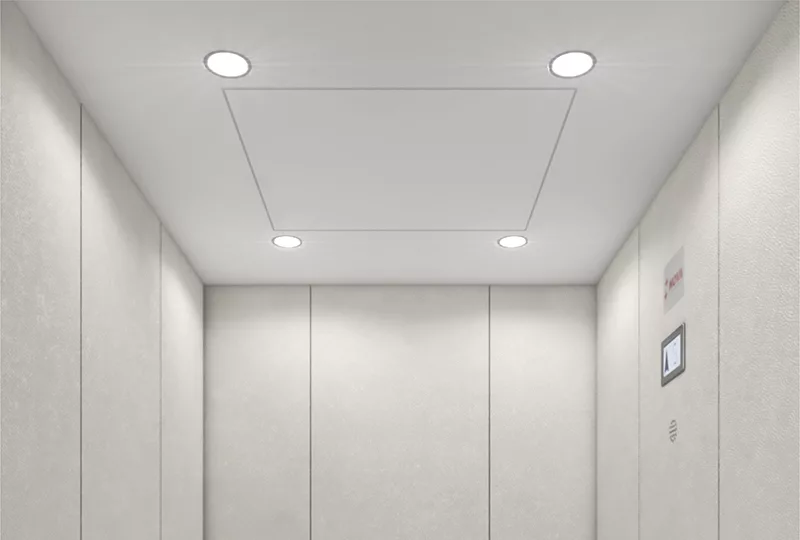

4 x LED Downlights Flush

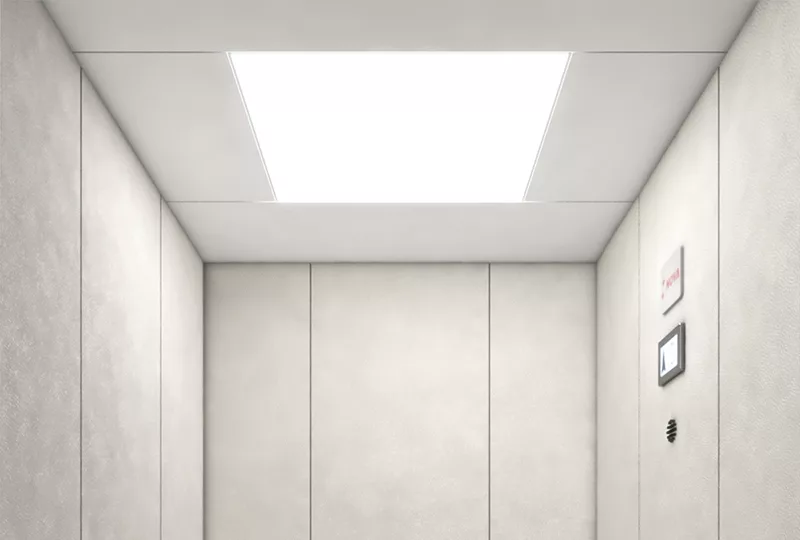

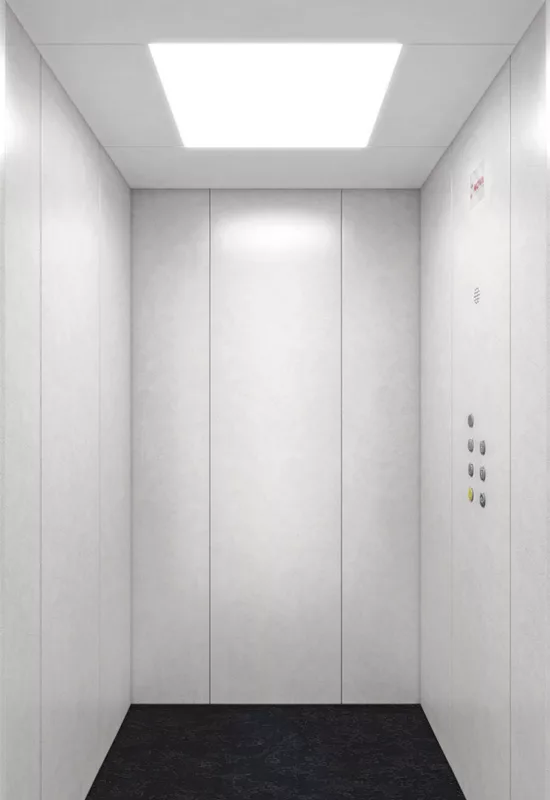

LED – Panel Flush

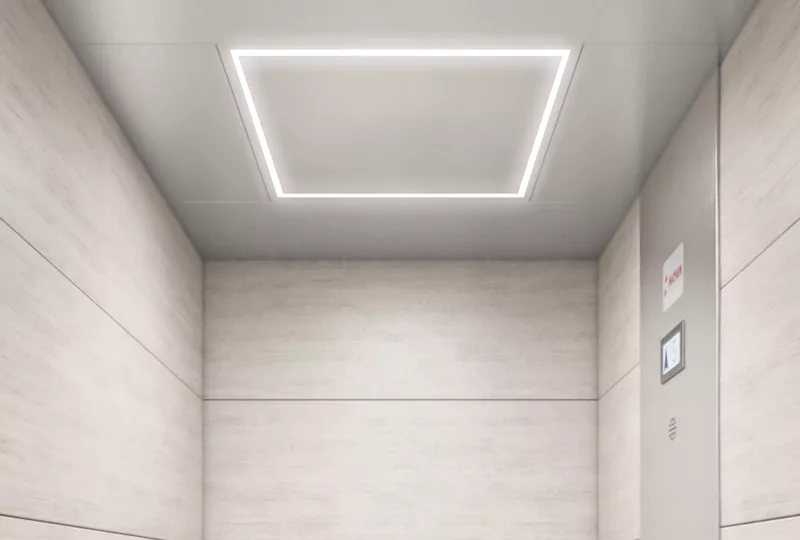

LED – Quadro Flush

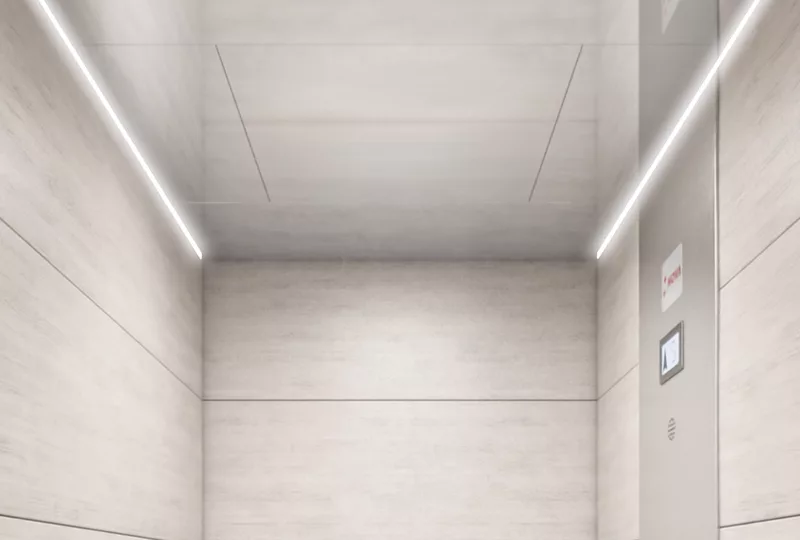

LED – Line Flush

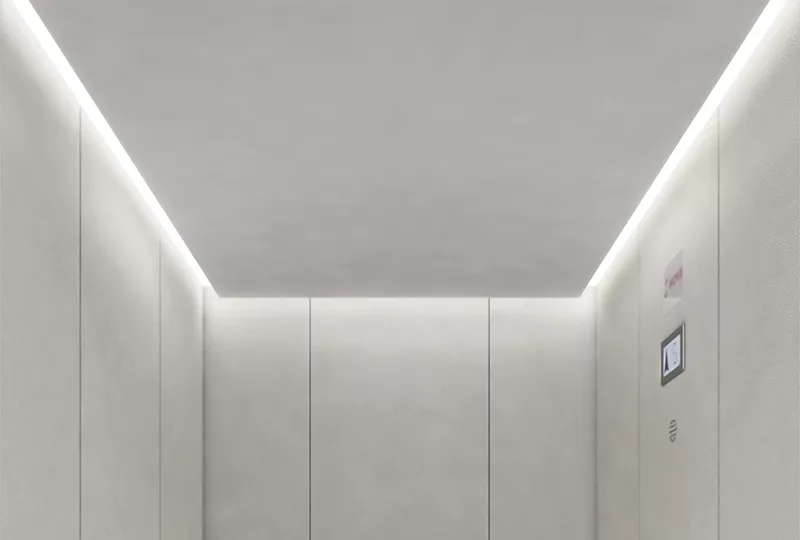

LED – Soft Suspended

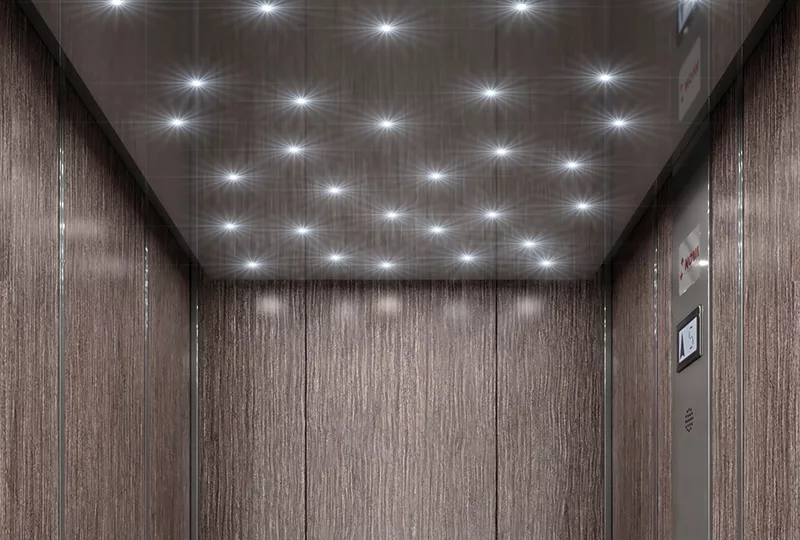

LED – Zodiaco Suspended

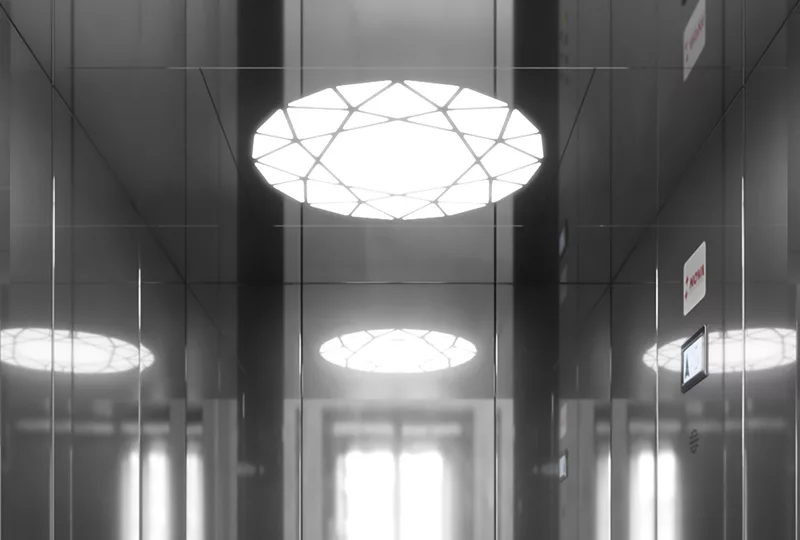

LED – Black Diamond Flush
Swing doors

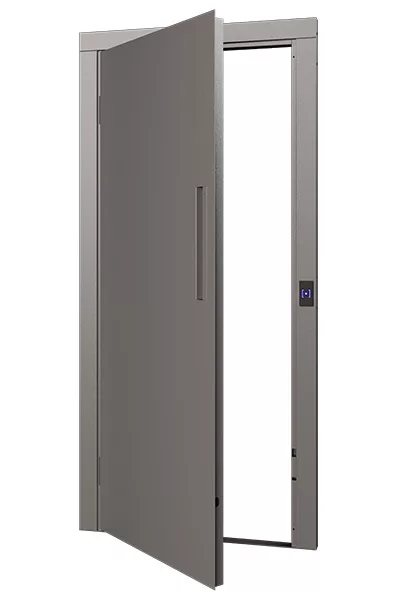

ND1
Blind in RAL painted steel
Available in thermal resistant version 2,4 W/mqK

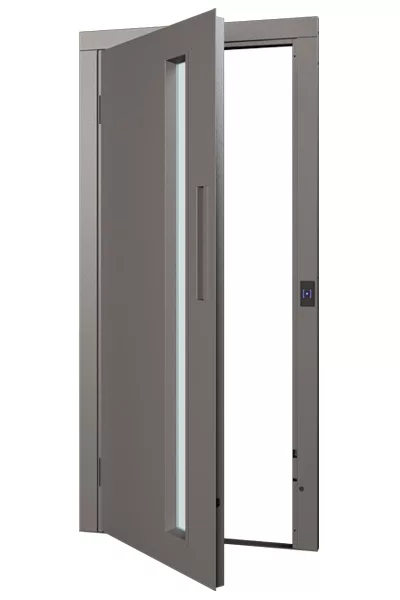

ND2
RAL painted steel with vertical panoramic window and flush handle
ND3
Glazed RAL painted steel with flush handle
Available in thermal resistant version 2,4 W/mqK

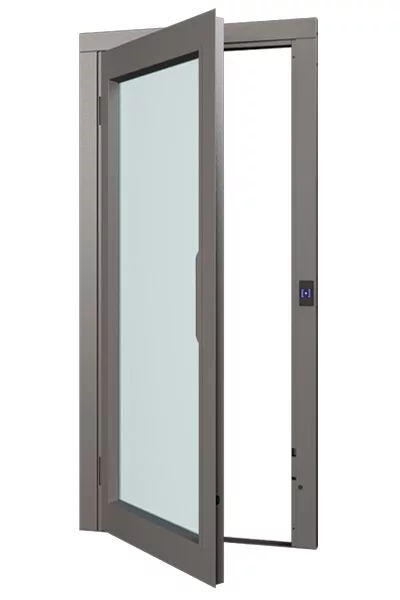

ND4
RAL painted with full panoramic window and flush handle

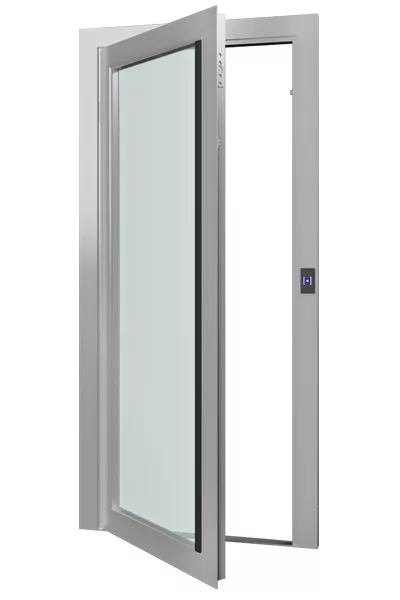

ND-ALU
Panoramic anodized aluminium door with flush handle
PAINTED ND-ALU
Panoramic Ral painted aluminium door with flush handle
Automatic doors

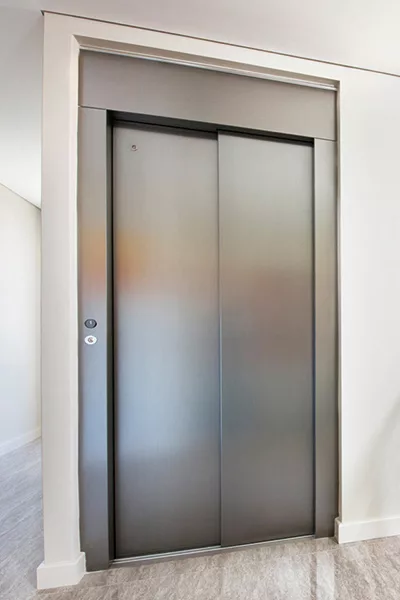

SLIDING
BLIND PANEL
For cabin and landing
Side or centre opening

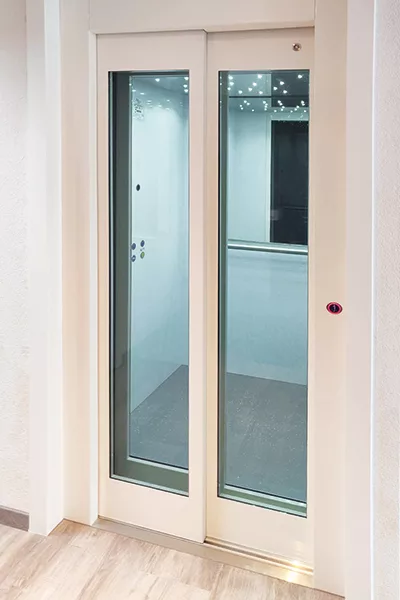

SLIDING
FRAMED GLASS
For cabin and landing
Side or centre opening

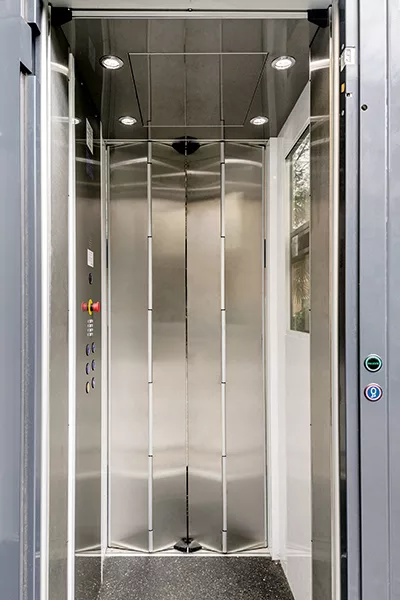

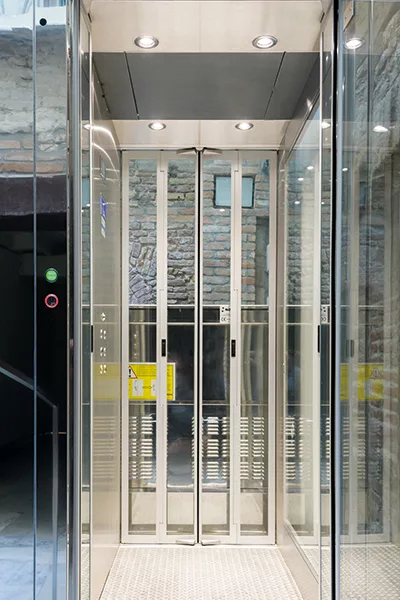

FOLDING
Stainless Steel
FOLDING
Glass
Glass colors for swing doors

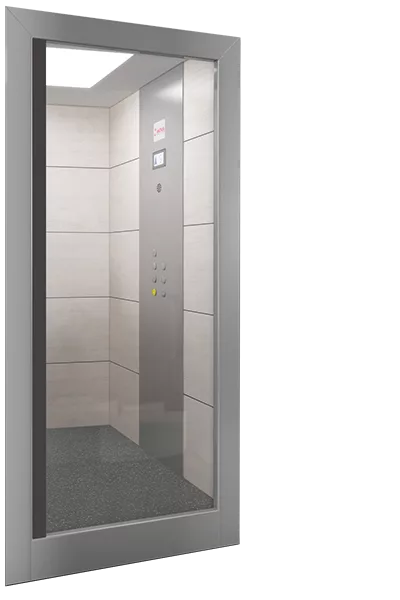

CLEAR

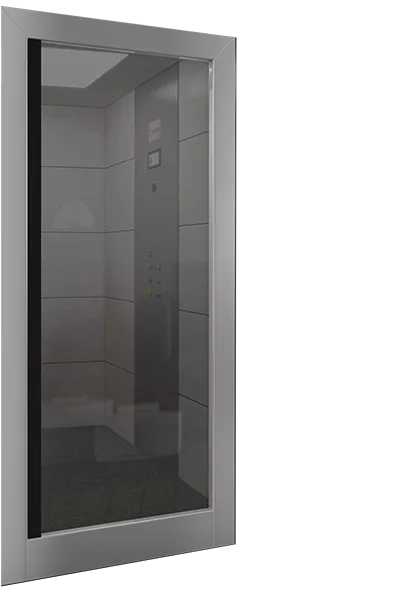

SMOKED GREY
Also available in stopsol version

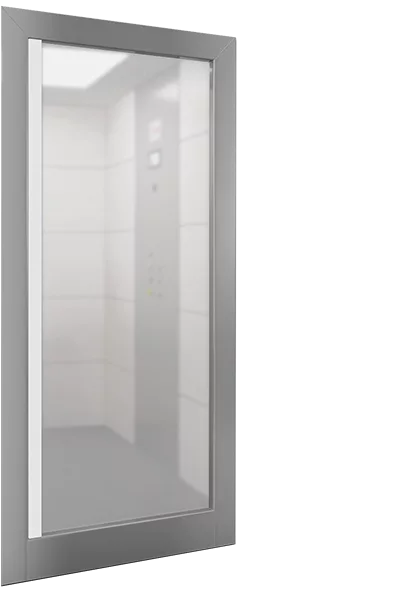

MILK WHITE

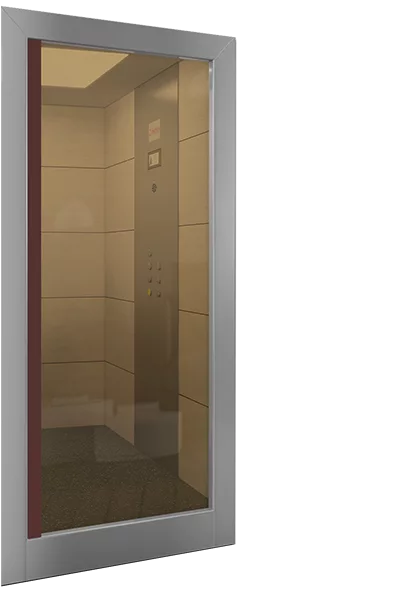

BRONZE
Also available in stopsol version

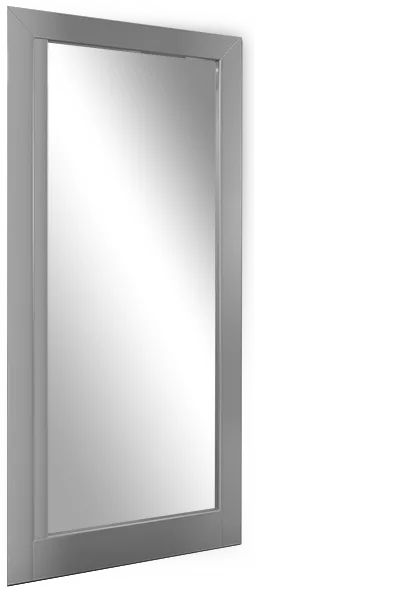

MIRROR
Single or double-sided
Handles for swing doors
ALUMINIUM HANDLE
CURVED STAINLESS STEEL HANDLE
“C” SHAPED ALUMINIUM HANDLE
FLUSH HANDLE
Thermal resistant doors
Thermal resistant doors provide a highly energy-efficient comfort for outdoor installations. All thermal resistant doors installed with Suitelift range are certified by Zephir for energy-saving.
They are designed to reduce heat loss and grant a thermal trasmittance index of 2,4 W/mqK (measured according to UNI EN ISO 100777-1.2 norm), four times more efficient than a common elevator swing door.
MAIN FEATURES:
- Laminated safety glass with double glazing. The spacers are made of insulating material.
- The blind parts of the doors are filled in with insulating material.
- Insulating magnetic sealing on the perimeter.
- In the lower part of the door there is an automatic sealing which hermetically seals and at the same time preservs the mobility of the door without scratching the floor.
- Interchangeability of thermal doors with existing doors of whatever manufacture.
Fire-Rated Doors
The fire-rated doors for Suite home elevators are manufactured and certified according to the current European standards UNI EN 81.58, available in CLASS EI 120 EW 60.
A fire dooris a door that allows you to isolate and contain the flames that can develop in the rooms of buildings for residential or public use: their essential feature is to meet the fire resistance requirements according to the standards international fire safety systems.
Finishes
Skinplate
A1 OPTICAL WHITE
A4 MILK WHITE
PPS10 WHITE
A90GTA CANVAS
N1 LIGHT GREY
DT63 FABRIC BEIGE
DT65 FABRICK BLACK
L4SMA BRONZE
F12PPS STAINLESS-STEEL LOOK
N3PP GLOSS BLACK
Plastic laminate
DOUGLAS ICE
388 microline
DOUGLAS VANILLA
381 microline
TEAK SUMATRA
1612 root
AMAZZONIA SUCUPIRA
609 holz
STATUARIO
1459 papier
CAUCASO
549 papier
NERO
421 ostuni
BRUSHED GOLD
874
POLISHED GOLD
881
POLISHED GUNMETAL
726
Stainless Steel
SATIN STAINLESS STEEL
POLISHED STAINLESS STEEL
GOLD
STAINLESS STEEL
GOLD
STAINLESS STEEL
CHAMPAGNE
STAINLESS STEEL
Standard colors (texturized finish)
RAL 9003
SIGNAL WHITE
RAL 9010
PURE WHITE
RAL 1013
PEARL WHITE
RAL 1019
GREY BEIGE
RAL 8017
CHOCOLATE BROWN
RAL 9006
WHITE ALUMINIUM
RAL 9007
GREY ALUMINIUM
4213
MICACEOUS IRON
RAL 7016
ANTHRACITE GREY
RAL 9005
JET BLACK
All K7 RAL colours and special colours (ex. Gold, Bronze, Corten…) available upon request.
Flooring
PVC FOR CLASSIC
13332 WHITE MARBLE
42292 CHARCOAL SLATE
13002 SILVER CONCRETE
13022 BETON CONCRETE
13082 GRAVEL CONCRETE
STUDDED RUBBER FOR CLASSIC
G3 BOLLI (Black)
G1 BOLLI (Grey)
Accessories
Mirrors

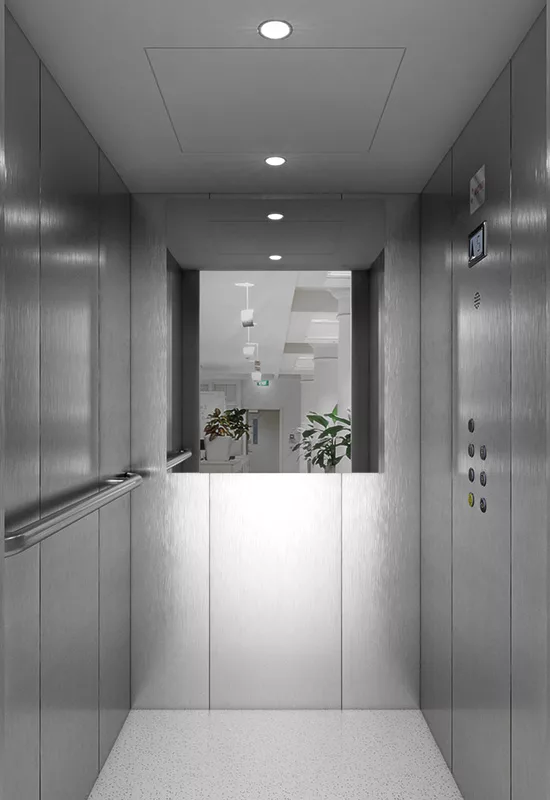

BASIC MIRROR
- 840 x 1050 mm

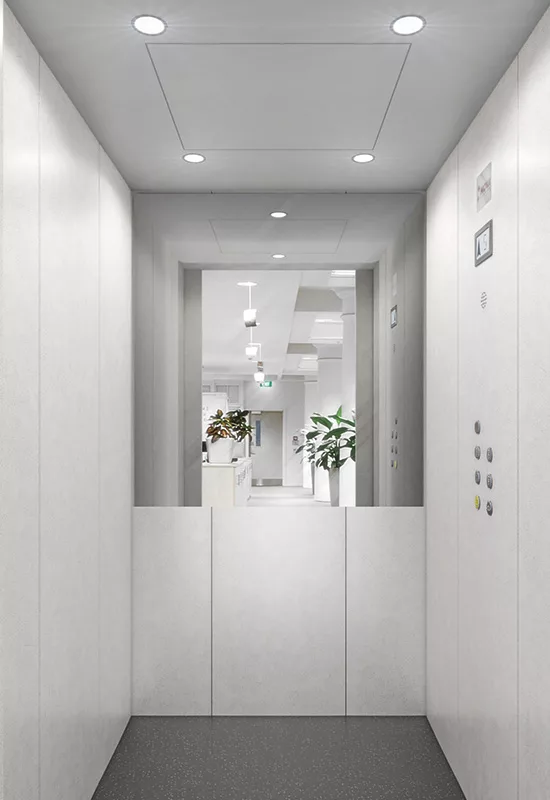

HALF WALL MIRROR
- Cabin width x 1050 mm
FULL-WIDTH, FULL-HEIGHT MIRRORS
- Cabin width x cabin height
Handrails

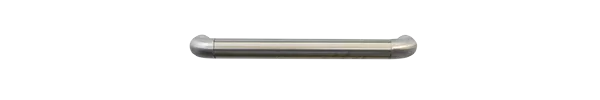

STAINLESS STEEL HANDRAIL WITH CURVED ENDS ON COP – Length: 480 mm

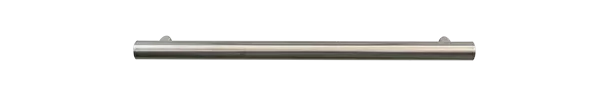

STAINLESS STEEL HANDRAIL WITH STRAIGHT ENDS

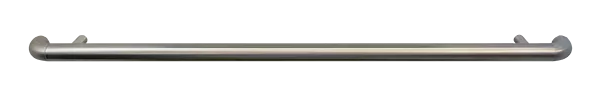

STAINLESS STEEL HANDRAIL WITH CURVED ENDS
Comfort inside the cabin
Door opening

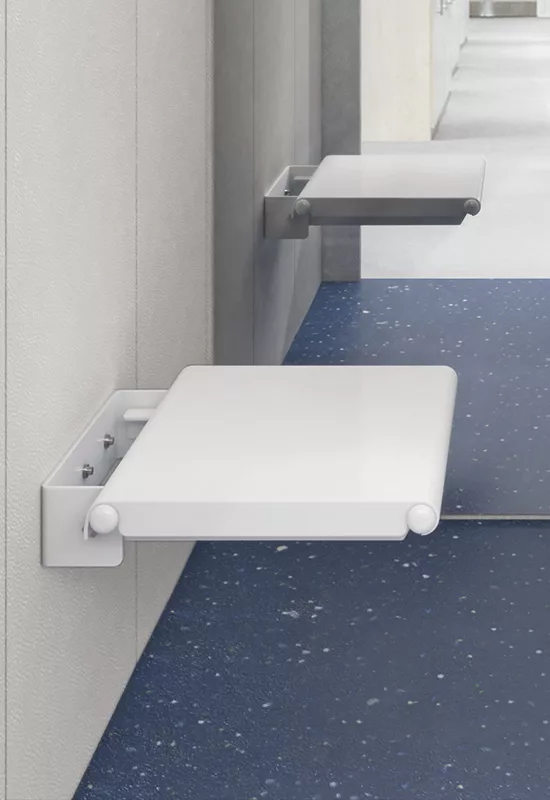

FOLDABLE SEAT
IN WHITE PLEXIGLASS
AXIAL CABIN FAN
Diameter Ø110 air flow 60 m³/h
CROSS-FLOW CABIN FAN
Length 300 mm air flow 360 m³/h

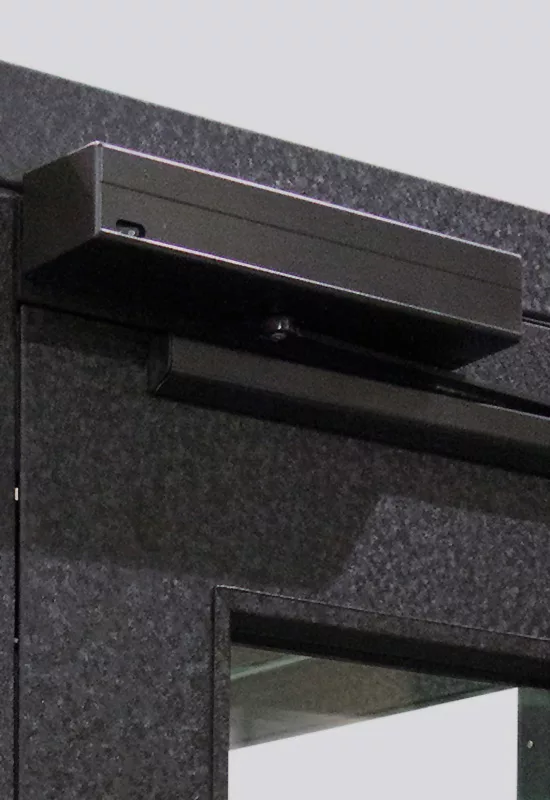

AUTOMATIC OPENING SYSTEM FOR SWING DOORS

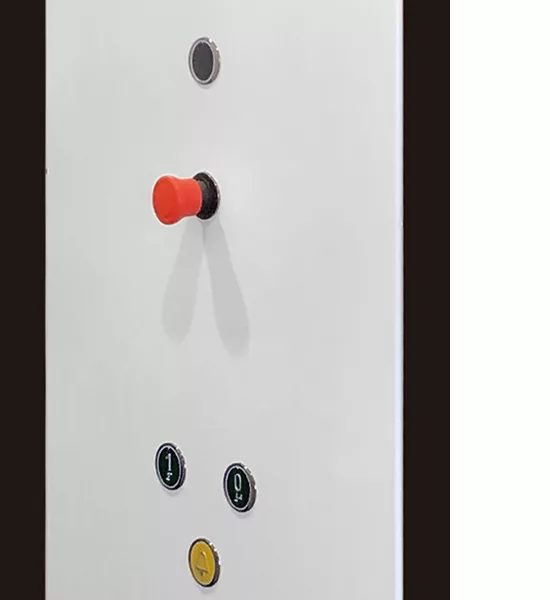

Standard COP

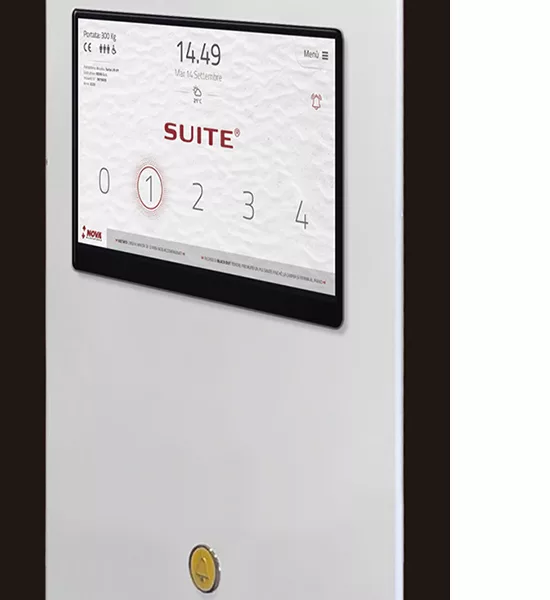

Touch Screen COP

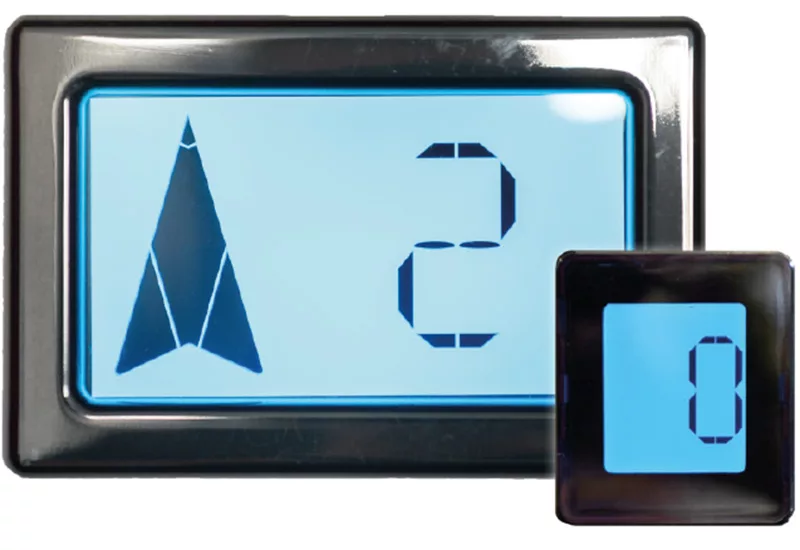

LCD Display
Flat mounted buttons are inserted directly into the COP panel, without the use of additional brackets and plates, to achieve an essential and elegant appearance. The red mushroom-shaped Stop pushbutton is standard only for homelifts without car doors (EU), while it is absent for installations with car doors and automatic operation.
Buttons

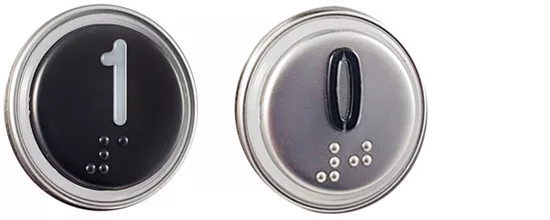

ROUND BUTTONS INSIDE THE CAR AND AT LANDINGS
- Color: silver stainless steel (standard) or black stainless steel (optional)
- Twin light: white light, turns blue if pressed
- All buttons are supplied with embossed number or symbol (as required by 81-70 standard) and braille alphabet (as provided by DM 236/89).
The new touch screen display transforms the homelift into a modern design element, using state-of-the-art technology. Through the display it is possible to manage options (welcome messages, background…) and additional information about the lift status.
- LCD display inside car
- Black multicolor LCD display at landings (with diagnostics)

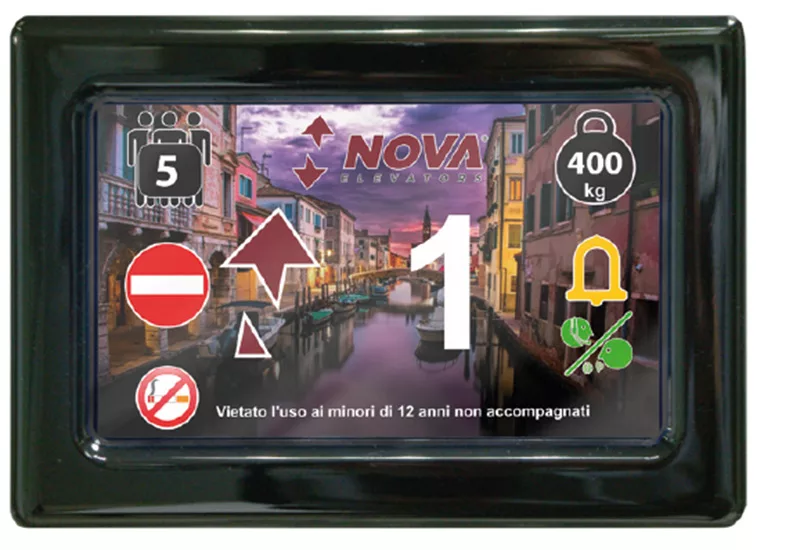

TFT Display
TFT display inside the car
Safety

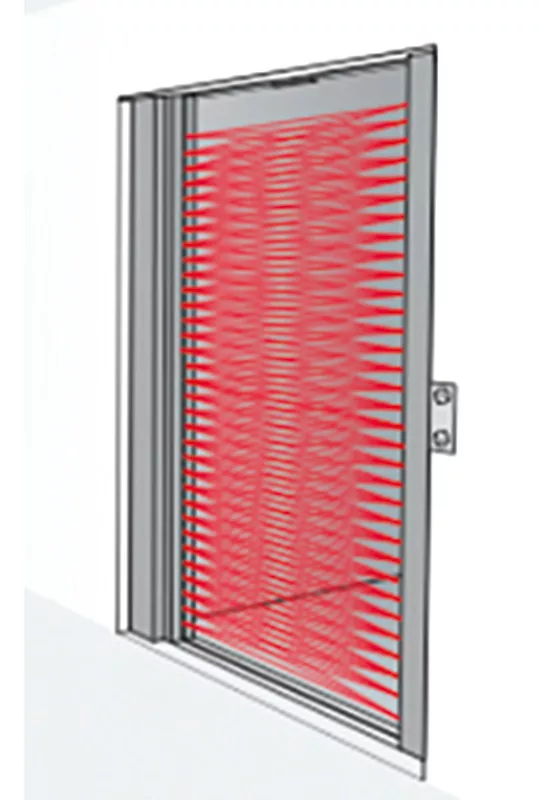

INFRA RED SMART DOORS
The system monitors that obstacles are clear along the entire height of the door.

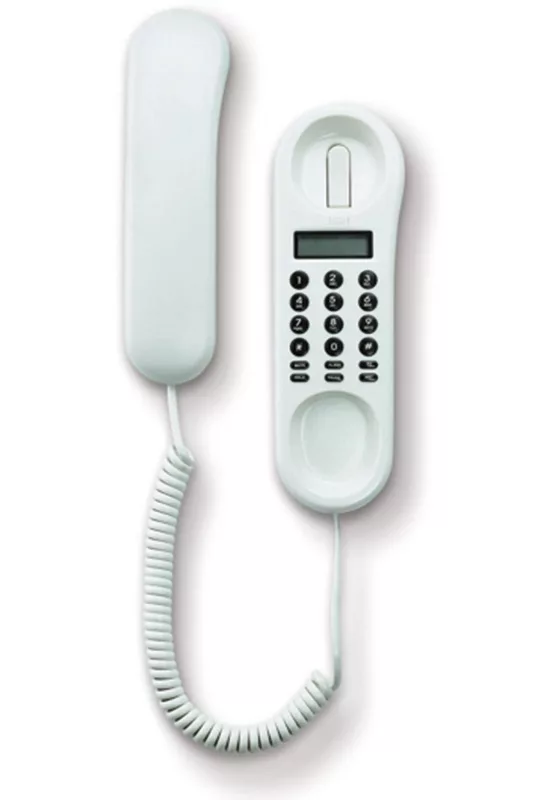

TELEPHONE HANDSET IN CABIN
The device is directly connected to the fixed telephone line to call outside the building from the cabin.
REMOTE ASSISTANCE
- PSTN AUTO-DIALER FOR FIXED LINE
- PSTN-AUTO DIALER WITH GSM-LINK MODULE
- GSM-LINK MODULE
“Smart” remote assistance systems that allows passengers to send the alarm straight to a rescue center.
Restricted Access

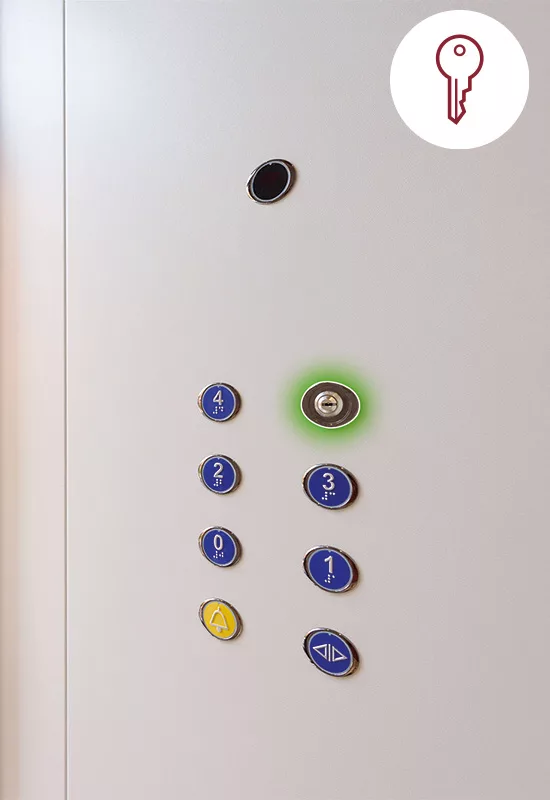

ENABLING KEY AT LANDING
- Only the key owners can operate the lift
ENABLING KEY INSIDE THE CABIN
- Only the key owners can operate the lift from inside the cabin

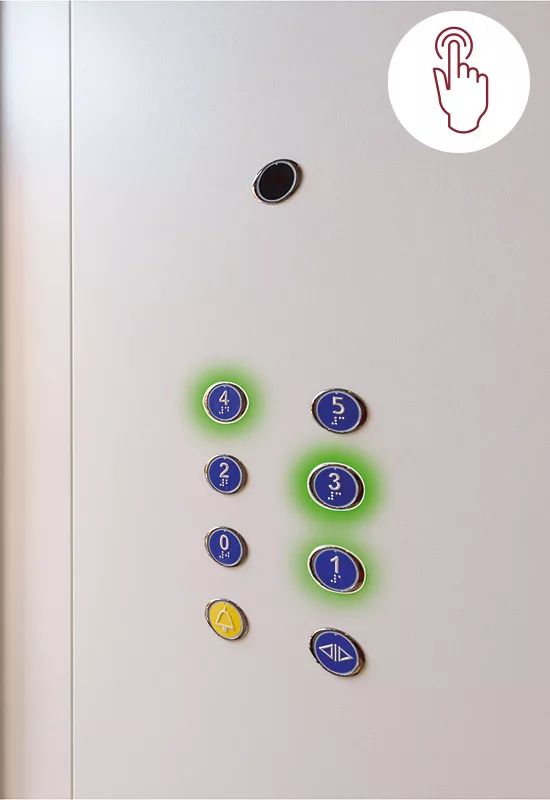

PIN CODE AT LANDING
- Those who know the pin code can call the lift using the push-buttons at landing.
PIN CODE INSIDE THE CABIN
- Those who know the pin code can operate the lift pressing the relevant push-buttons on the cop

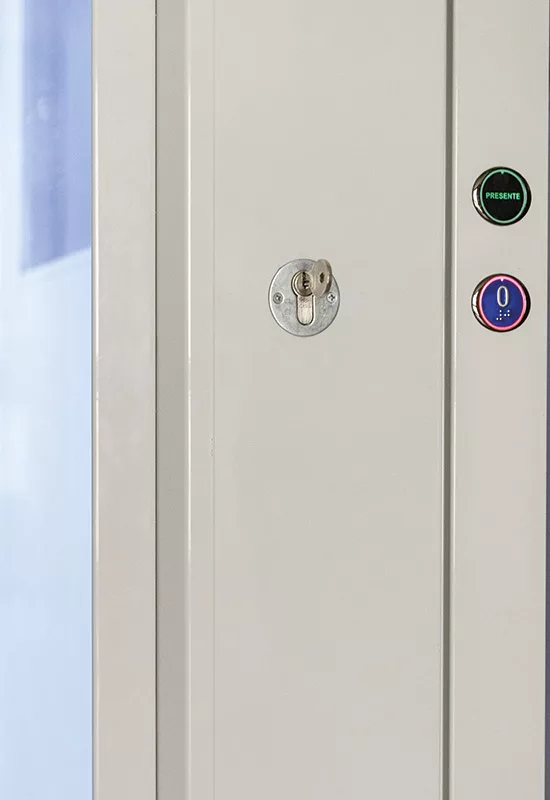

ANTI-INTRUSION SAFETY KEY FOR SWING DOORS
- Safety key to prevent access to lift on outdoor landings
MANUAL UNLOCK DEVICE FOR SWING DOORS
- Allows to manually open the swing door from inside the cabin
GUEST ACCESS
- Free operation:
to enable the use of the lift to third parties for a limited time - Private operation:
to enable the use of the lift to third parties to reach exclusively the desired floor
